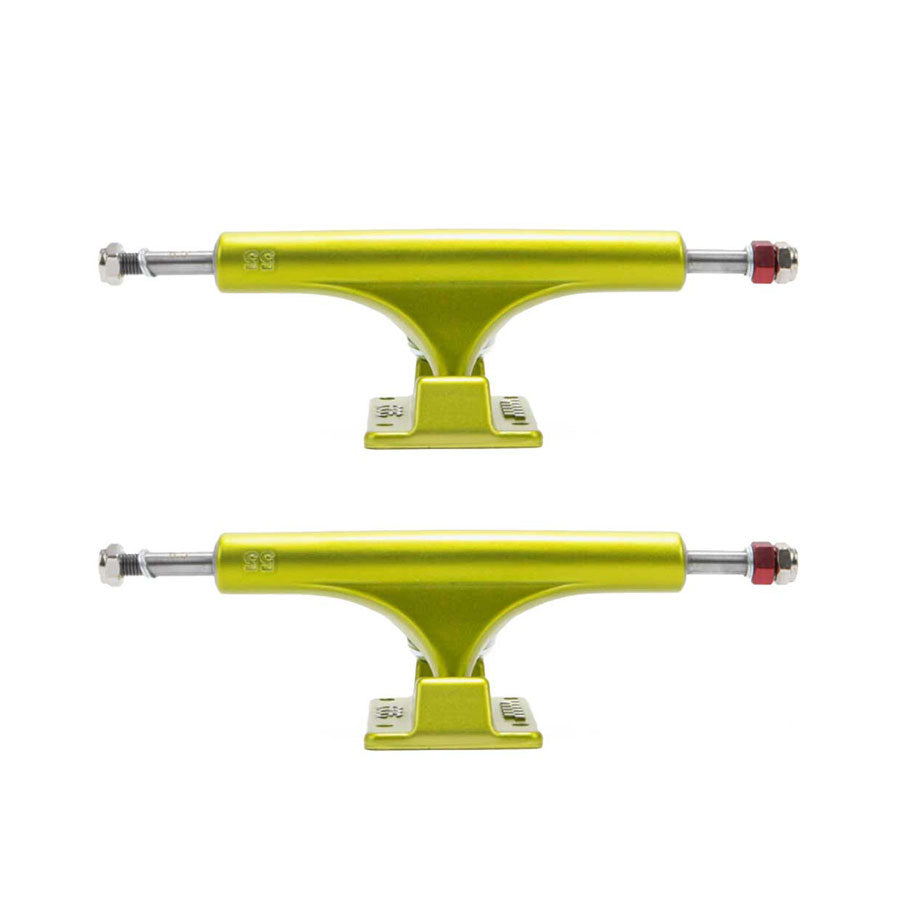

Ace AF1 Trucks Satin Lime
Ace AF1 Trucks Satin Lime
Regular price
$88.00 CAD
Regular price
Sale price
$88.00 CAD
Unit price
/
per
Shipping calculated at checkout.
$88.00
Size Chart
| Board Size | 7.5" - 7.8" | 7.8" - 8.2" | 8.2" - 8.3" | 8.3" - 8.6" | 8.6" - 8.8" | 8.8" - 9.2" | 9" - 9.5" | 9.3" - 9.6" | 9.5" - 10.5" |
|---|---|---|---|---|---|---|---|---|---|
| Truck Size | 7.6" | 8.0" | 8.25" | 8.5" | 8.75" | 9.0" | 9.125" | 9.5" | 10" |
| Ace | N/A | 33 | 44 | 55 | 60 | 66 | N/A | 77 | 80 |
| Independent | 129 | 139 | 144 | 149 | 159 | N/A | 169 | N/A | 215 |
| Krux | 7.6" | 8.0" | 8.25" | 8.5" | N/A | 9.0" | N/A | N/A | N/A |
| Lurpiv | N/A | 140 | 145 | 145/150 | 150 | 160 | N/A | N/A | N/A |
| Slappy | N/A | 8.0" | 8.25" | 8.5" | 8.75" | N/A | N/A | N/A | N/A |
| Thunder | 145 | 147 | 148 | 149 | 151 | N/A | 161 | N/A | N/A |
| Venture | 5.0 | 5.2 | 5.6 | 5.8 | 6.1 | N/A | N/A | N/A | N/A |
Couldn't load pickup availability
SKU:210000113225
PRODUCT INFORMATION
PRODUCT INFORMATION
The all-new Ace AF1 features game-changing performance without deviating from Ace's original Ace geometry. The AF1 is carefully manufactured using their proprietary casting process. Years in development, the Ace AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. They updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.
PRODUCT FEATURES
PRODUCT FEATURES
- Hanger width: 5.6” (143mm)
- Truck height: 2.1” (53mm)
- Manufactured with high-quality AA 356.2 alloy using their own proprietary casting method
- True T6 heat-treated baseplates and hangers
- SAE 4140 steel alloy axles, oversized to eliminate bearing wobble
- Patent pending rethreading axle nuts - no more damaged axle ends!
- Durable Hand-poured 96a urethane pivot bushings for better response
- Refined suspension for a cleaner turn
- Top Bushing: 12mm tall | 91a hardness
- Bottom Bushing: Bottom 14mm tall | 86a hardness
- Machine-faced hanger ends for precise bearing contact
