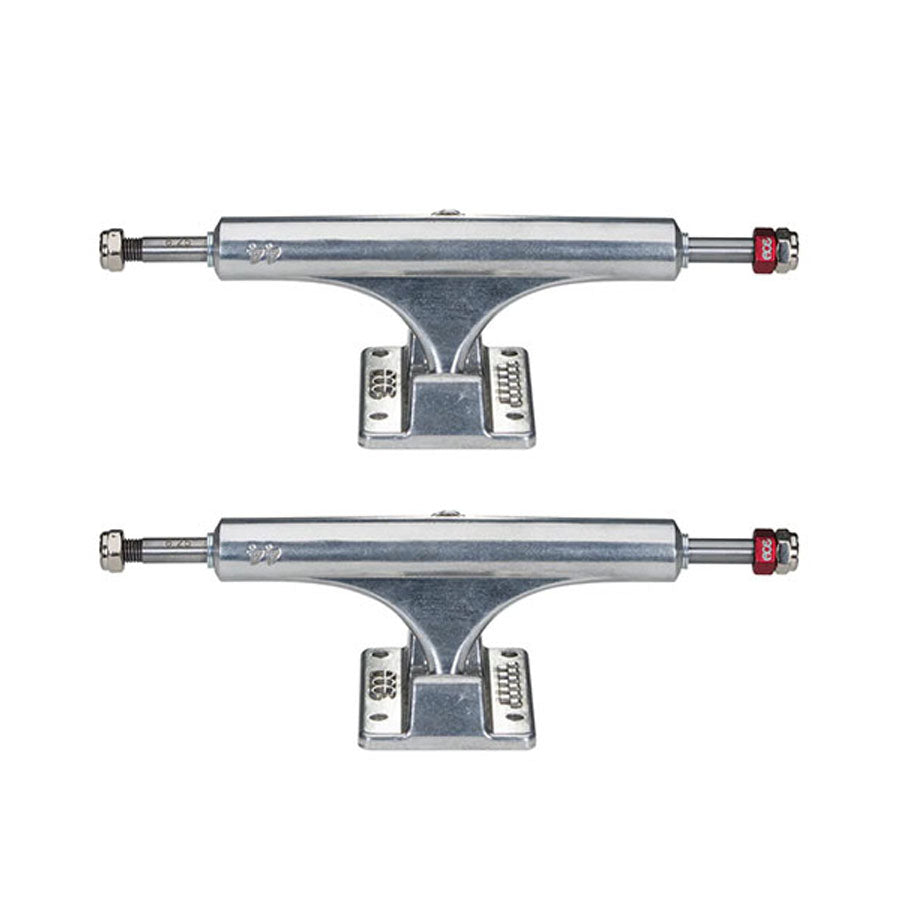

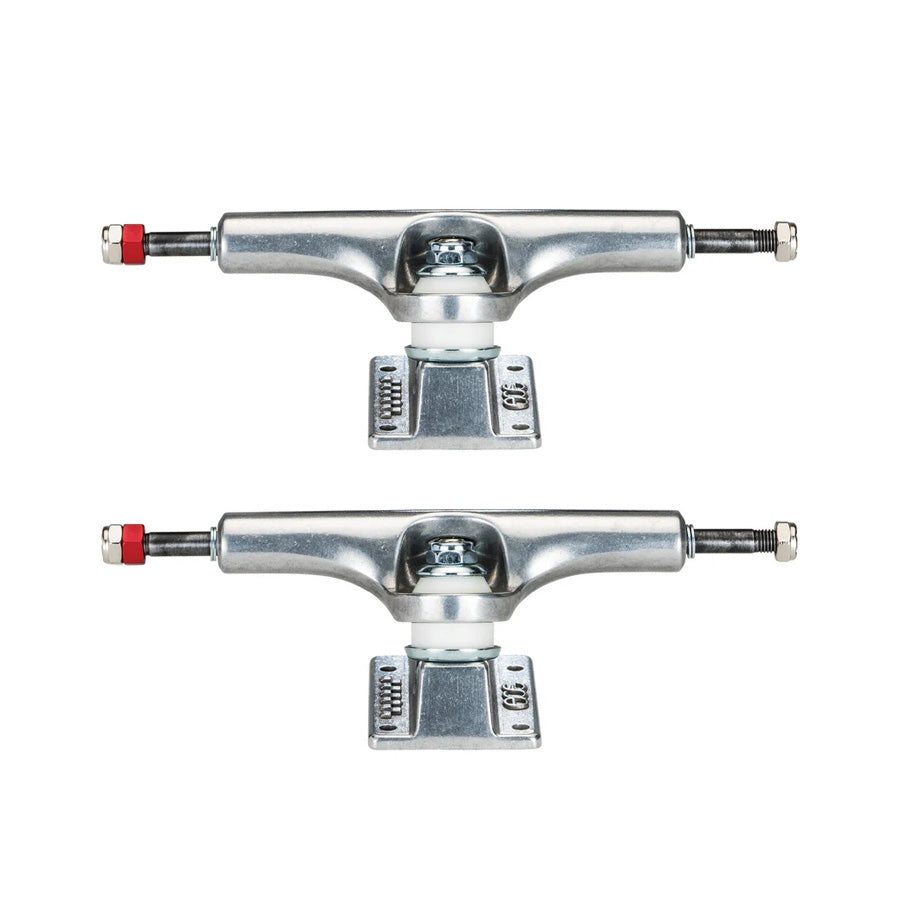

The all-new ACE AF1 Hollows features a hollow axle and kingpin, making for the lightest AF1 to date. The AF1 is carefully manufactured using a proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market.

Features:

• 8.6% Lighter than standard AF1

• Hanger width: 5.6” (143mm)

• Truck height: 2.1” (53mm)

• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method

• True T6 heat-treated baseplates and hangers

• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.

• Patent pending rethreading axle nuts - no more damaged axle ends!

• Durable Hand-poured 96a urethane pivot bushings for better response.

• Refined suspension for a cleaner turn.

• Top Bushing: 12mm tall | 91a hardness

• Bottom Bushing: Bottom 14mm tall | 86a hardness

• Machine-faced hanger ends for precise bearing contact.
